Hydraulic wire feeder boom
Hydraulic wire feeder boom

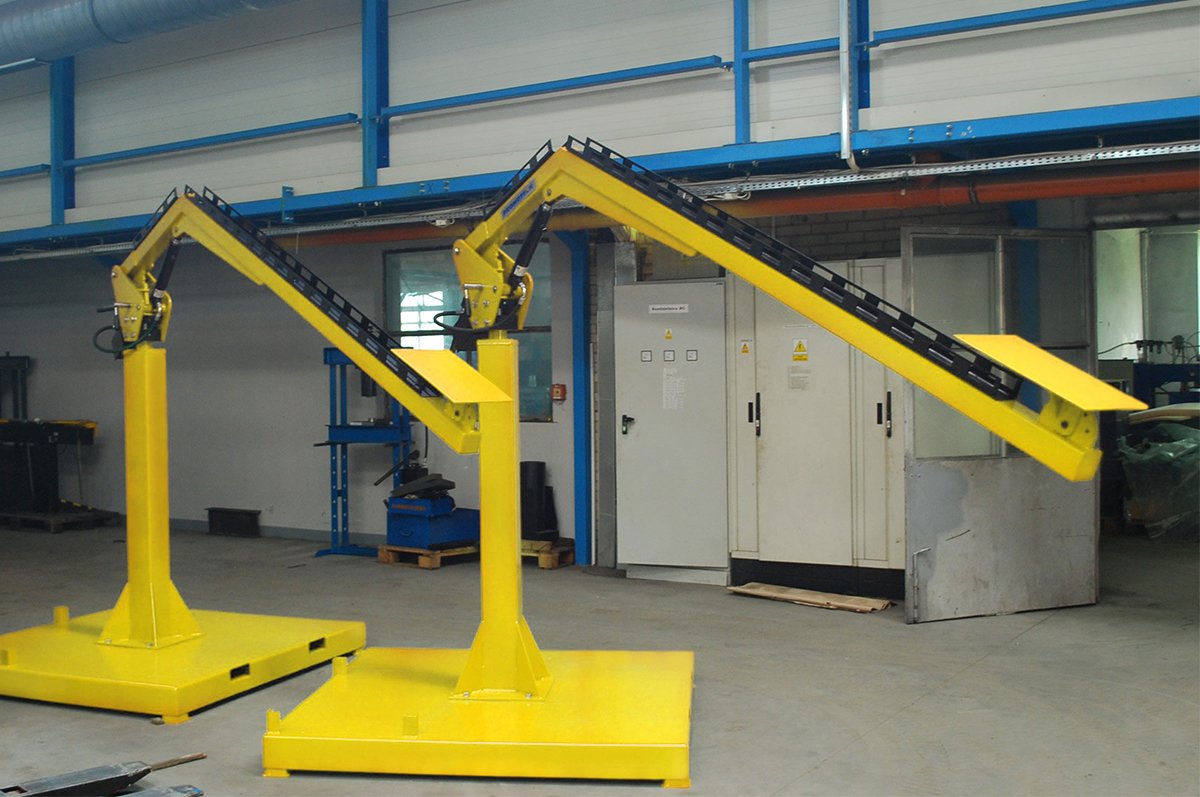

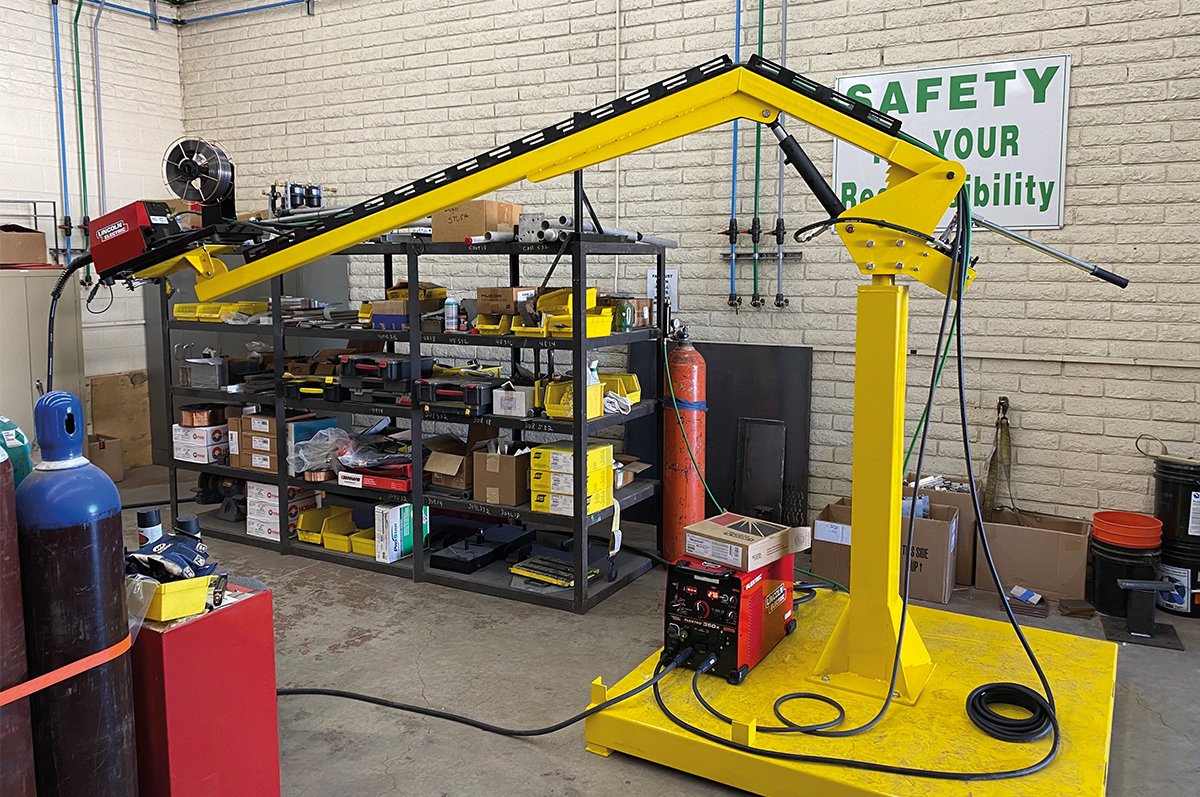

The hydraulic wire feeder boom was engineered as a valuable addition to a welder’s workspace, capable of accommodating both the power source and wire feeder. The ergonomic and efficient design of the wire feeder enhances the welder’s tasks, rendering them more streamlined and productive. The lifting, lowering, and rotation features of the Hydraulic wire feeder boom expand the workspace and facilitate effortless relocation of the unit throughout the shop floor.
- can be rotated up to 360° around the vertical axis

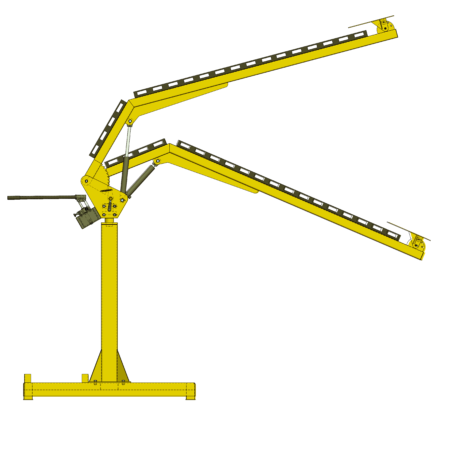

- adjustable height of the boom from 1300 mm (51″) up to 3430 mm (135″)
- product code: WSG-000003
Specification
| Reach | 3000 mm (118″) |
| Lifting height | 1300 – 3430 mm (51 – 135″) |
| Rotation angle | 0-360° |
| Maximum load (wire feeder, wire) | 50 kg (110 lbs) |
| Dimensions [L x W x H] | 3750 mm × 1600 mm × 2390 mm (min) / 3430 mm (max) 148″ x 63″ x 94″ (min) / 135″ (max) |
| Weight | 330 kg (733 lbs) |
